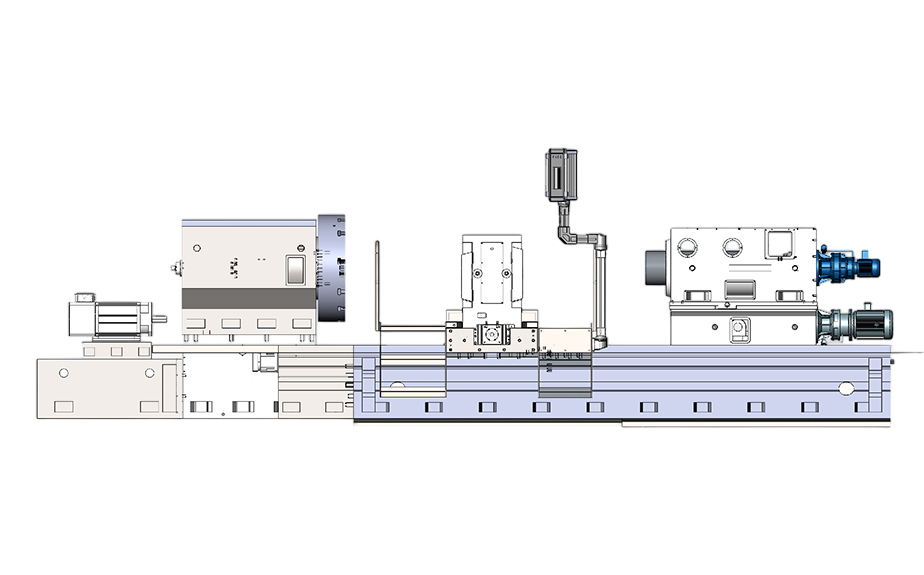

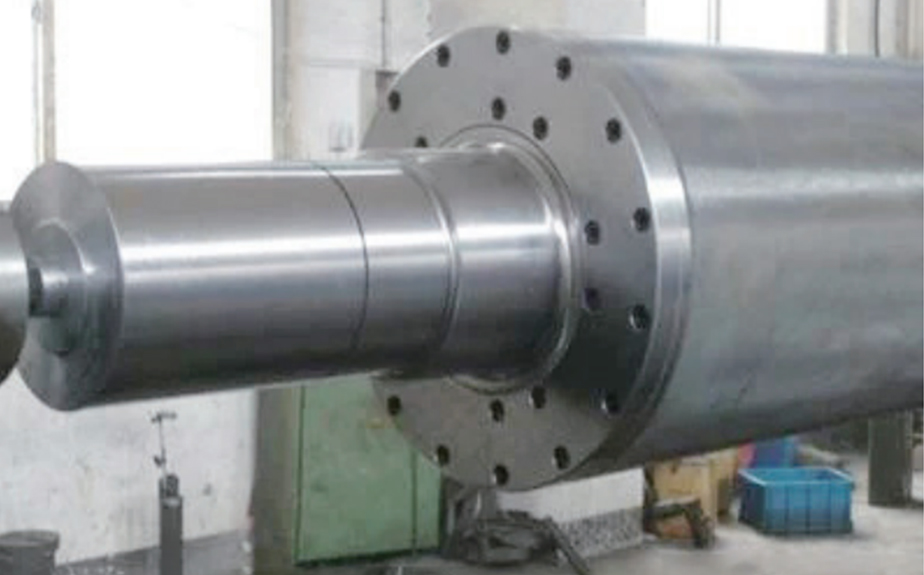

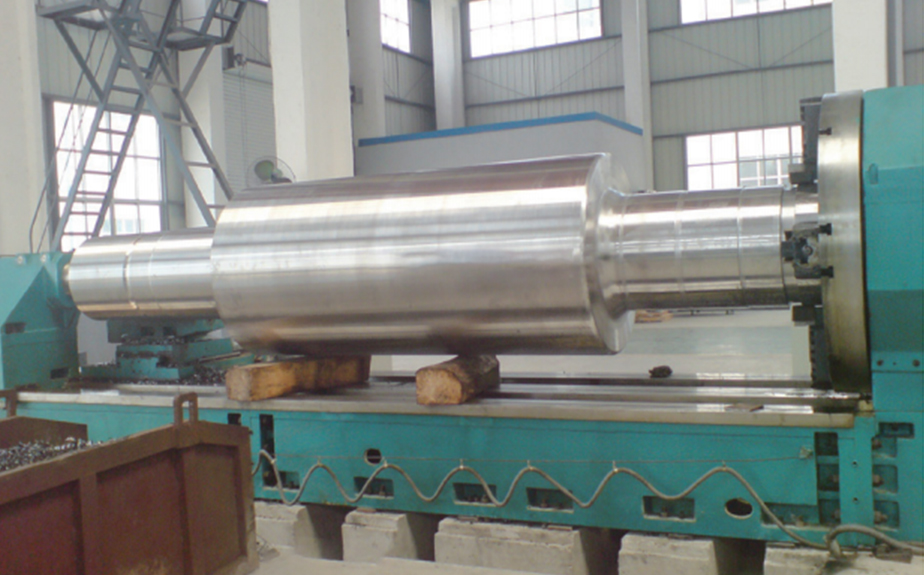

Product Features:
The large CNC roll lathe adopts three-way structure,which has the characteristics of high rigidity、precision stability and retention.
The design of components is modular, with a high degree of standardization,good interchangeability, and stable quality.
The CNC large roll lathe is advanced in design、 reliable in performance、easy to operate and easy to maintain.It is desiged based on european competitors advaced structure. Our engineer digested and absorbed the concept.
The whole machine has a high rigidity framestructure design, so it not only has the ability of strong cutting, but also canmeet the processing of precision parts.
This series of CNC roll lathes is mainly used for the processing of planes,curved suraces and holes. lt is widely used in the rough and finish machining of various plates, boxes,racks and other complex parts in the machinery manufacturing industy. Three-axis linkageof longitudinal motion . Mult-process processing such as miling, boring, rilling,rigid tapping,reaming and countersinking can be performed.
Product Parameters:
Item | Machine model | ||
CK8465 | CK8480 | CK84100 | |
Max.swing diameter | Φ650mm | Φ800mm | Φ1000mm |
Max.turning diameter | Φ650mm | Φ200~Φ800mm | Φ1000mm |
Max.workpiece length | 3300mm/5200mm | 3300mm/5200mm | 5000mm/6000mm/8000mm |
Max.turning length | 3000mm/5000mm | 3000mm/5000mm | 5000mm/6000mm/8000mm |
Machine guide rail width | 1100mm | 1100mm | 1350mm |
Bed Rail Form | Four guide rails | ||
Max, Machine loading weight | 8T | 8T | 20T |
X axis stroke | 425mm | 425mm | 500mm |
Z axis stroke | 3000mm/5000mm | 3000mm/5000mm | 5050mm/6050mm/8050mm |
X/Z axis movement speed | 10000mm/8000mm | 10000mm/8000mm | 3000mm/6000mm |
X/Z axis minimum feed amount | 0.001mm | ||
Spindle rotary speed (stepless ) | 10-300rpm | 10-300rpm | 4-200rpm |
Spindle top code | A2-15 | A2-15 | A2-15 or1 :30 Long Cone |
Spindle bore | Φ130 | Φ130 | Φ100 |
Spindle front end taper | Metric140 | ||
Spindle top taper | MT-6 | ||
Chuck | Φ630mm | Φ800mm | Φ1000mm |
Cutter shank section&mm | 40×40 | 40×40 | 50× 50 |
Tailstock sleeve diameter | Φ260mm | Φ260mm | Φ300mm |
Tailstock sleeve stroke | 300mm | ||
Tailstock sleeve cone taper | MT-6 | MT-6 | Φ100(1 :7) |
Spindle power | AC30 KW | AC45 KW | AC75 KW |
Working accuracy | IT6~IT7 | ||
Workpiece surface roughness | Ra0.8 | ||
