Product Features:

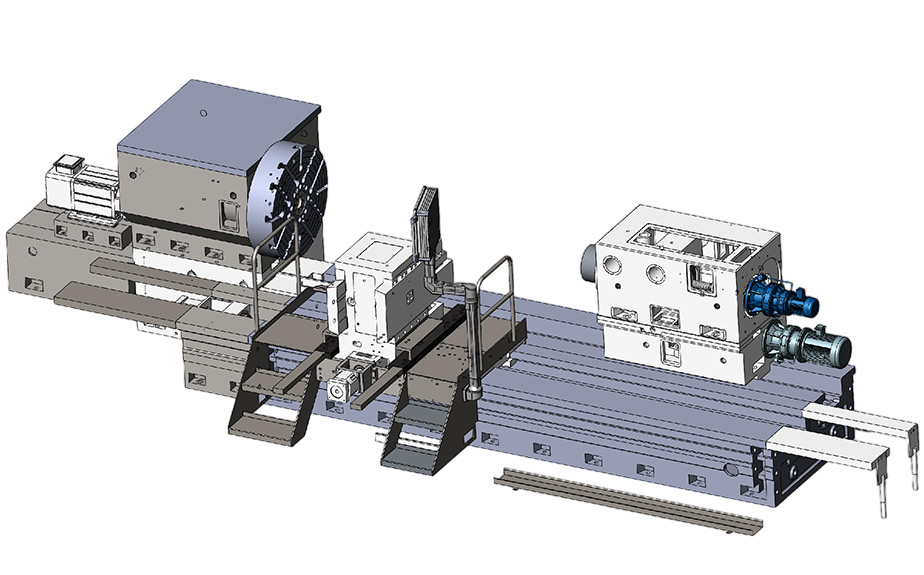

The CNC roll athe adopts three-way structure has the characteristics of high rigidity、precision stability and retention.
The design of components is modular, with a high degree of standardization、good interchangeability and stable quality.
The machine tool is advanced in design、reliable in performance、 easy to operate and easy to maintain.At the same time,Our engineer design this type roll lathe by digested advanced european design.
The whole machine has a highrigidity framestructure design, so it not only has the ability of strong cutting, but also can meet the processing of precision parts.
This series of CNC roll lathes is a mechanical processing equipment that integrates advanced technologies such as machinery, electicty, and hydraulics,and is mainly used for the processing of planes,curved suraces and holes.
lt is widely used in the rough and fnish machining of various plates, boxes,racks and other complex parts in the machinery manufacturing industy. Three-axis linkageof longitudinal motion . Mult-process processing such as miling, boring, rilling,rigid tapping,reaming and countersinking can be performed.
Product Parameters:
Item | Machine model | ||
CK84125 | CK84140 | CK64160 | |
Max.swing diameter | Φ1250mm | Φ1400mm | Φ1600mm |
Max.turning diameter | Φ200mm~1250mm | Φ500mm~1400mm | Φ500mm~1600mm |
Max.workpiece length | 5000mm/6000mm/8000mm | 5200mm/6200mm/7000mm | 5000mm/6000mm/8000mm |
Max.turning length | 5000mm/6000mm/8000m | 5000mm/6000mm/7000m | 5000mm/6000mm/8000mm |
Machine guide rail width | 1450mm | 1750mm | 1750mm |
Bed Rail Form | Four guide rails | Four guide rails,Z axis rail,Xaxis hard rail | Four guide rails |
Max, Machine loading weight | 20T | 40T | 50 or 63T |
X axis stroke | 500mm | 600mm | 700mm |
Z axis stroke | 5050mm/6050mm/8050mm | 5000mm/6000mm/7000mm | 5050mm/6050mm/8050mm |
X/Z axis movement speed | 3000/6000mm | 4000/6000mm | 3000mm/6000mm |
X/Z axis minimum feed amount | 0.001mm | ||
Spindle rotary speed (stepless ) | 4-200rpm | 4-110rpm | 4-200rpm |
Spindle top code | 1:30 long cone | ||
Spindle bore | Φ100 | Φ130 | Φ100 |
Spindle front end taper | Metric140 | 196.869(1;4) | Metric140 |
Spindle top taper | 1;4 short cone | ||
Chuck | Φ1000mm | Φ1000mmHeavy duty | Φ1000mm |
Cutter shank section&mm | 50×50 | 60×60 | 50× 50 |
Tailstock sleeve diameter | Φ280mm | Φ400mm | Φ500mm |
Tailstock sleeve stroke | 300mm | ||
Tailstock sleeve cone taper | AC75 KW | AC90 KW | AC110 KW |
Spindle power | IT6~IT7 | IT6~IT7 | IT6~IT7 |
Working accuracy | Ra0.8 | ||
