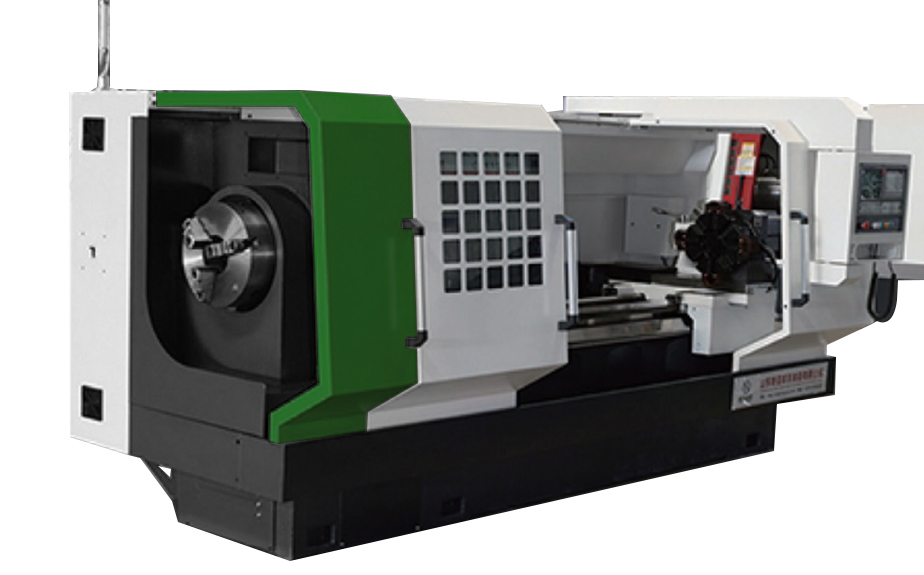

Product Features:

STANDARD ACCESSORIES

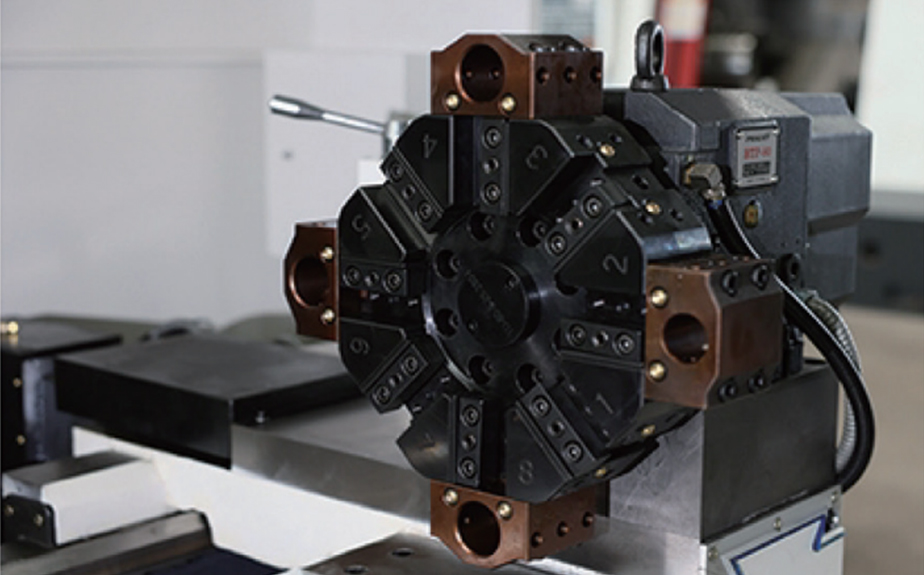

NC turret 4-station, 3-jaw chuck, manual tailstock, automatic lubrication, coolant system, semi-shield

OPTIONAL ACCESSORIES

FANUC, SIEMENS, KND and other CNC controller, hydraulic turret or power turret, pneumatic chuck or hydraulic chuck,hydraulic tailstock, full-shield

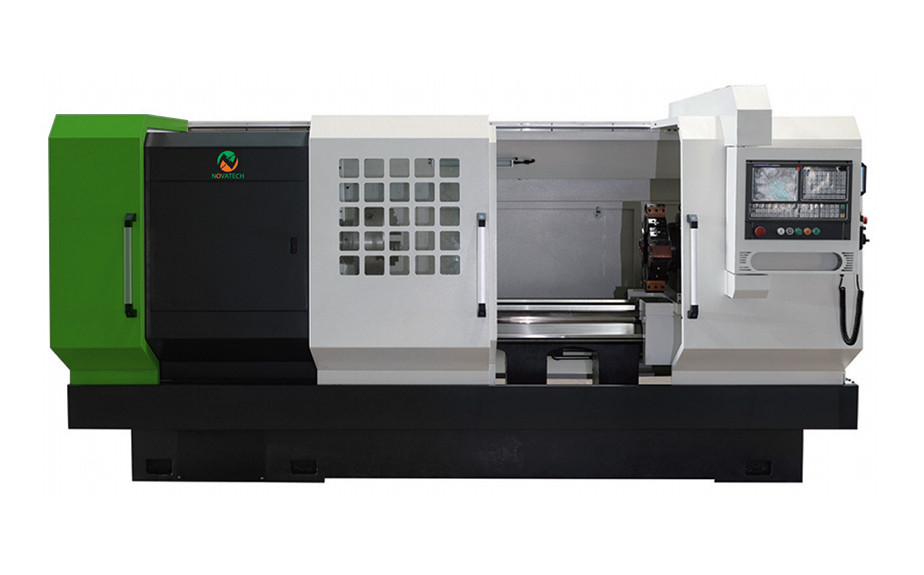

CNC PIPE THRADING LATHE APPLICATION

This series of pipe threading lathe can adopt various CNC systems to achieve automatic control. Widely used for various turing tasks. such as turning various parts,end faces,inner and outer cylindrical surfaces, conical surfaces,spherical suraces, curved surfaces, grooves, metric and inch threads, taper threads, etc, especialy suitable for turning various inner and outer pipe threads.

FEATURES

Integral machine bed adopts high strength iron to realize high rigidity and precision; Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance; Carriage and guide way contact surface use Turcite B to maintain accuracy

Product Parameters:

Main technical parameters of CDK6150/CDK6160 Series CNC Spindle Bore lathe

Item		Unit	CDK6150 (Ф110)	CDK6150 (Ф140)	CDK6150 (Ф160)	CDK6150 (Ф170)	CDK6160 (Ф200)	CDK6160 (Ф225)
Item		Unit	CDK6150 (Ф110)	CDK6150 (Ф140)	CDK6150 (Ф160)	CDK6150 (Ф170)	CDK6160 (Ф200)	CDK6160 (Ф225)
CNC system			(Standard equipment):GSK980TC3 (Alternative configuration):FANUC 0i-TF;SIMENS808D;KND K1000Ti;GSK980TDC
Max dia.swing over bed		mm	500	500	500	500	600	600
Max dia swng over cross slide		mm	270	270	270	270	370	370
Max.length of work-piece		mm	1000	1000	1000	1000	1000	1000
Width of bed		mm	400	400	400	400	400	400
Spindle bore		mm	110	140	160	170	200	225
Power of spindle motor		mm	7.5	7.5	7.5	7.5	7.5	7.5
Mode of spindle speed		mm	Stepleess Frequency Speed Adjustment
Range of spindle speed		r/min	150-1000	70-800	70-700	70-700	70-500	70-500
Max.traverse of X/Z		mm	X:310 Z:800	X:310 Z:800	X:310 Z:800	X:310 Z:800	X:310 Z:800	X:310 Z:800
X/Z rapid traverse		mm/min	4000/5000	4000/5000	4000/5000	4000/5000	4000/5000	4000/5000
Tailstock quill	Diameter	mm	80	80	80	80	80	80
	Travel	mm	200	200	200	200	200	200
	Taper		Morse NO.5
Turret	Model		HAK-21192	HAK-21192	HAK-21192	HAK-21192	HAK-21192	HAK-21192
	No.of tool stations			Vertical four-station
	Dimension	mm	25x25	25x25	25x25	25x25	25x25	25x25
	Turret indexing time	s	2.6	2.6	2.6	2.6	2.6	2.6
Chuck			K11-320 three jaw chuck	K11-380 three jaw chuck	K11-400 three jaw chuck	K11-400 three jaw chuck	K11-500 three jaw chuck	K11-500 three jaw chuck
Positioning accuracy		mm	0.020	0.020	0.020	0.020	0.020	0.020
Repositioning accuracy		mm	0.01	0.01	0.01	0.01	0.01	0.01
Overall dimensions(LVH)		mm	2800x1750x1800
Machine weight		T	2.5	2.7	2.9	3.0	3.2	3.4

* Please Note:All parameters are subject to change without prior notice.
