STANDARD ACCESSORIES

NC turret 4-station, manual tailstock, automatic lubrication, coolant  system, semi-shield

OPTIONAL ACCESSORIES

FANUC, SIEMENS, KND and other CNC controller, quick change tool post, hydraulic turret or power turret, pneumatic chuck, hydraulic  chuck, hydraulic tailstock, full-shield

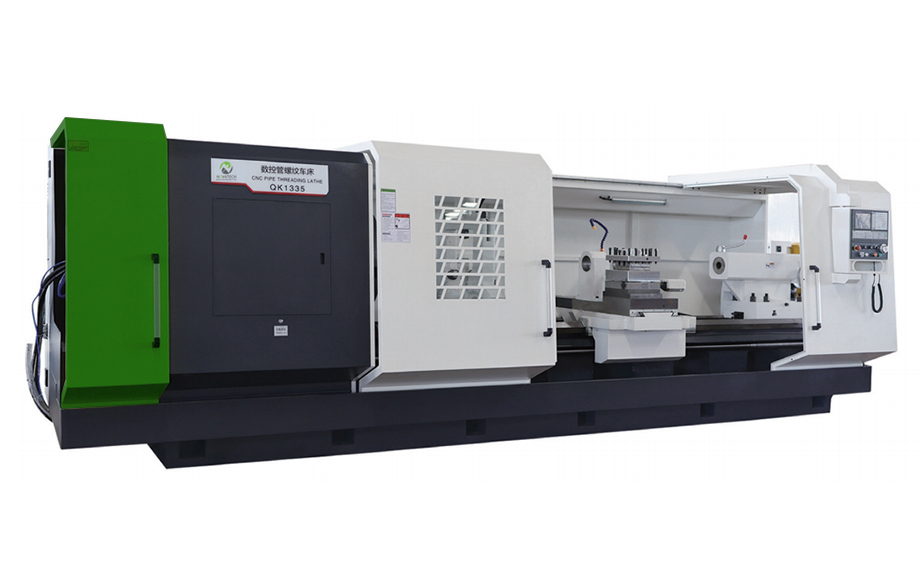

CNC PIPE THREADING LATHE APPLICATION

This series of CNC pipe thread lathe is mainly used to process internal and external pipe cylinders, tapered metric,inch pipe threads.  It can also be used as a general CNC lathe to turn the internal and exteral cylindrical surfaces, conical surfaces, spherical surfaces, curved  surfaces, grooves and end faces of various parts, This series of lathe is suitable for equipment manufacturing enterprises in the petroleum,  metalurgy,chemical, water conservancy, geological exploration and other industries, and is used to process pipe threads, dril pipes, drill  collars, and casing pipes.

FEATURES

Integral machine bed adopts high strength iron to realize high rigidity and precision;Ultrasonic frequency quenched guide-ways are hard  enogh for good wear-resistance;Carriage and guide way contact surface use Turcite B to maintain accuracy.

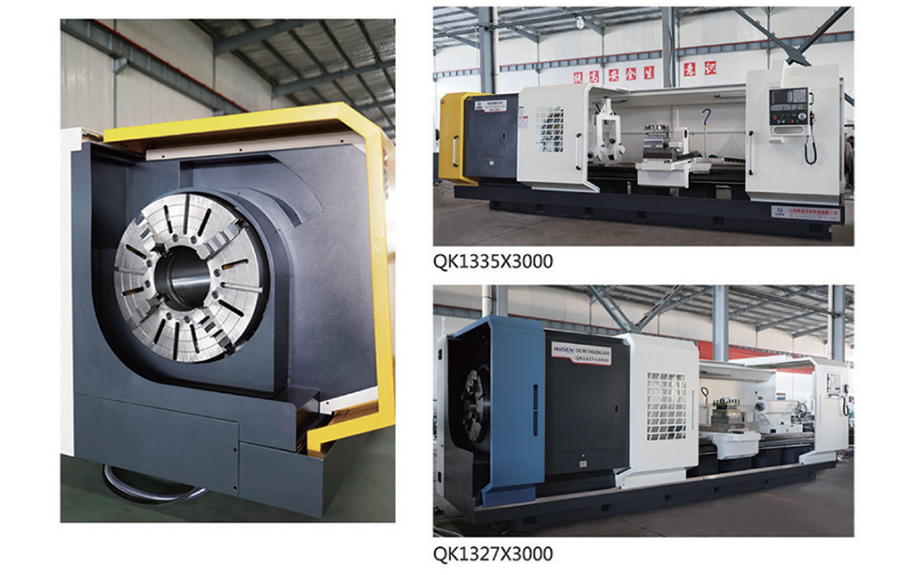

Big spindle bore and double  chuck allows clamp and process big diameter pipes;

Adopt electric chuck to improve batch processing efficiency with workpieces.
