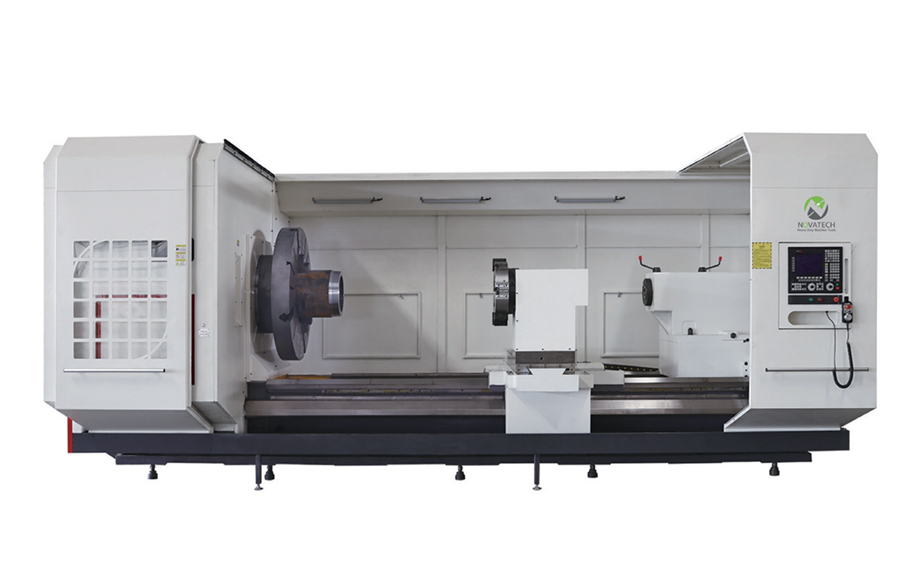

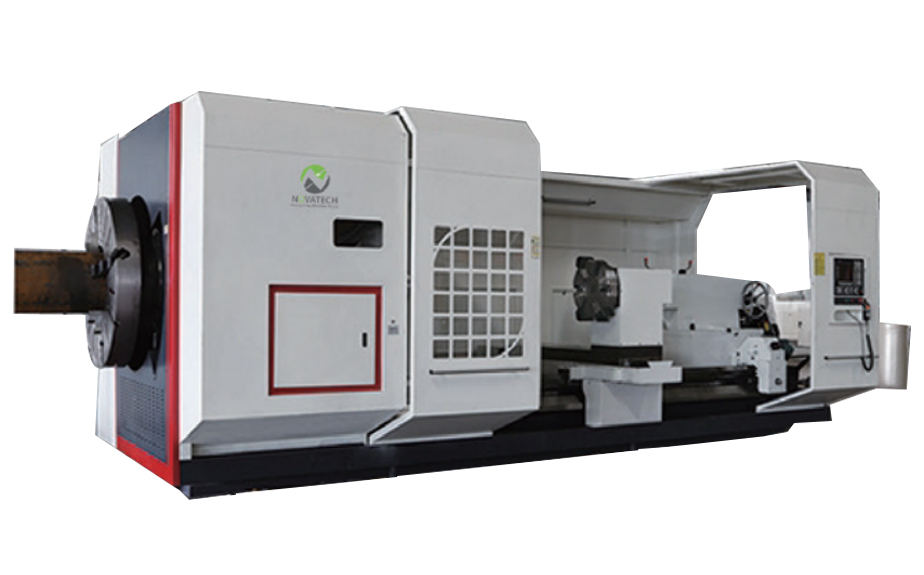

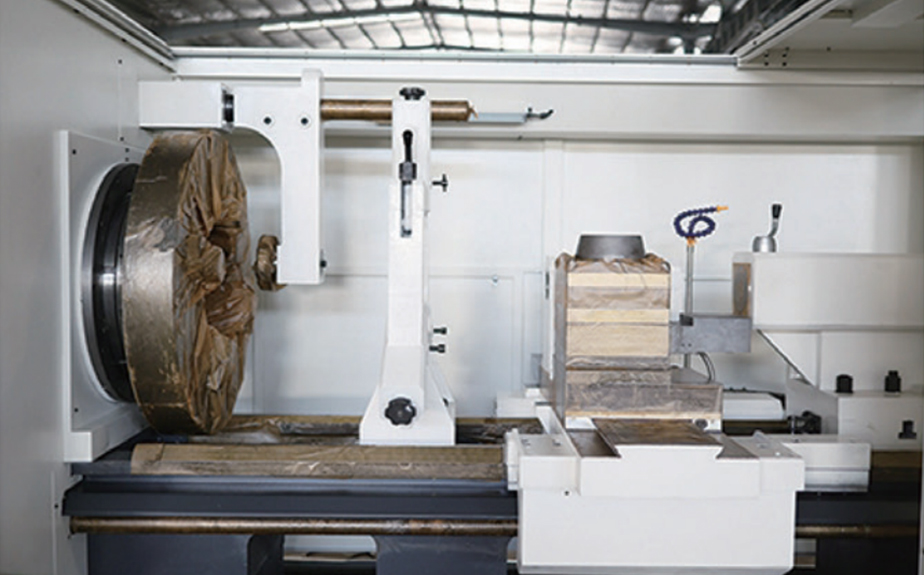

QK1353 CNC pipe threading machine-QK13 series CNC pipe threading lathe-Novatech CNC Heavy Duty Machine Tool(Shandong)Co.，Ltd-Novatech

Product Features:

STANDARD ACCESSORIES

NC turret 4-station, manual tailstock, automatic lubrication, coolant system, semi-shield

OPTIONAL ACCESSORIES

FANUC, SIEMENS, KND and other CNC controller, quick change tool post, hydraulic turret or power turret, pneumatic chuck, hydraulic chuck, hydraulic tailstock, full-shield

CNC PIPE THREADING MACHINE TOOL APPLICATION

This series CNC pipe threading machine tool is mainly designed for processing interal and external pipe threads,including metric inch and taper threads. As well as having all the common functions of normal CNC lathe, such as processing inner and outer cylindical surface, conical surface,spherical surface, curved surface,groove, end face, etc. This series lathe is widely used in industies including petroleum exploiting, minerals mining, chemical piping and geological prospecting. It is high-effciency equipment in processing and repairing driling pipe、driling rod、thread coupling and so on.

FEATURES

Integral machine bed adopts high strength iron to realize high rigidity and precision; Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance; Carriage and guide way contact surface use Turcite B to maintain accuracy; Big spindle bore and double chuck allows clamp and process big diameter pipes; Adopt electric chuck to improve batch processing efficiency with workpieces

Product Parameters:

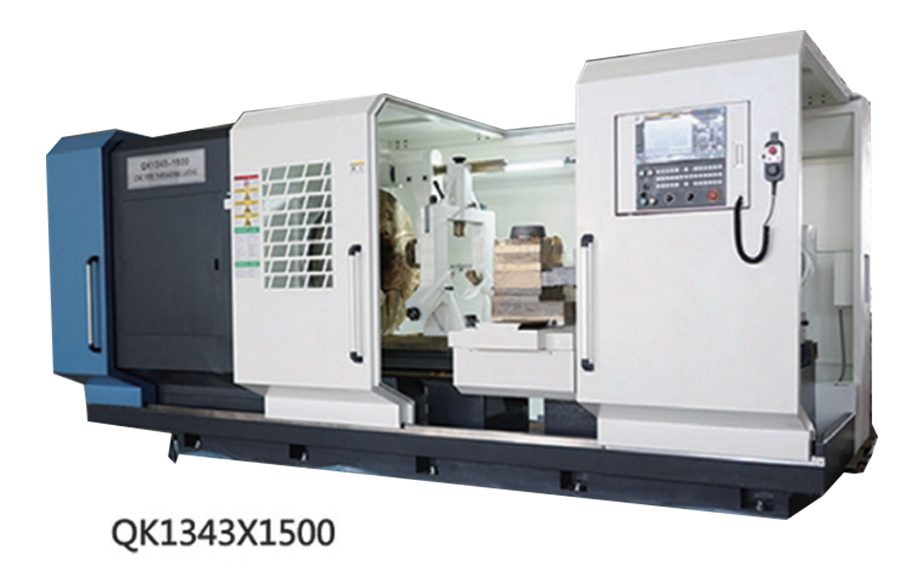

Main technical parameters of QK1343/QK1353/QK1363 CNC pipe threading machine tool

Item		Unit	QK1343	QK1353	QK1363
Item		Unit	QK1343	QK1353	QK1363
CNC system			(Standard equipment):GSK980TDi (Alternative configuration):FANUC 0i-TF;SIMENS808D;KND K1000Ti
Max dia.swing over bed		mm	1000	1250	1400
Max dia swing over cross slide		mm	610	860	950
Max.length of work-piece		mm	1500	1500	1500
Pipe threading range		mm	Ф260-430	Ф350-525	Ф450-625
Width of bed		mm	755	755	755
Spindle bore		mm	440	540	640
Spindle center height		mm	500	625	700
Power of spindle motor		mm	22	30	30
Mode of spindle speed		mm	Two gears smooth adjustment	Two gears smooth adjustment	Two gears smooth adjustment
Range of spindle speed		r/min	(L):23-90 (H):80-260	(L):20-80 (H):55-220	(L):15-65 (H):65-120
Max.traverse of X/Z		mm	X:550 Z:1250	X:650 Z:1250	X:750 Z:1250
X/Z rapid traverse		mm/min	4000/5000	4000/5000	4000/5000
Tailstock quill	Diameter	mm	140	160/260	160/260
	Travel	mm	300	300	300
	Taper		Morse NO.6	Morse NO.6	Morse NO.6
Turret	Model		SLD170A04N	SLD170A04N	SLD170A04N
	No.of tool stations		Vertical four-station	Vertical four-station	Vertical four-station
	Dimension	mm	32x32	32x32	32x32
	Turret indexing time	s	5.6	5.6	5.6
Chuck			K66-100 four jaw chuck	four jaw electric chuck	four jaw electric chuck
Positioning accuracy		mm	0.020	0.040	0.040
Repositioning accuracy		mm	0.01	0.02	0.02
Overall dimensions(LVH)		mm	4900x2200x2300	4900x2300x2350	4900x2300x2350
Machine weight		T	14	18	19

* Please Note:All parameters are subject to change without prior notice.
