Product Features:

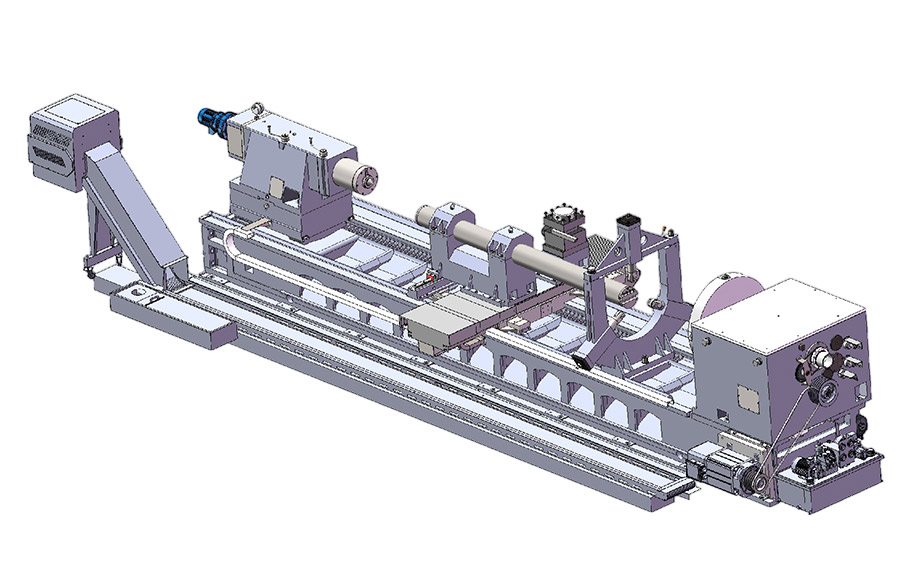

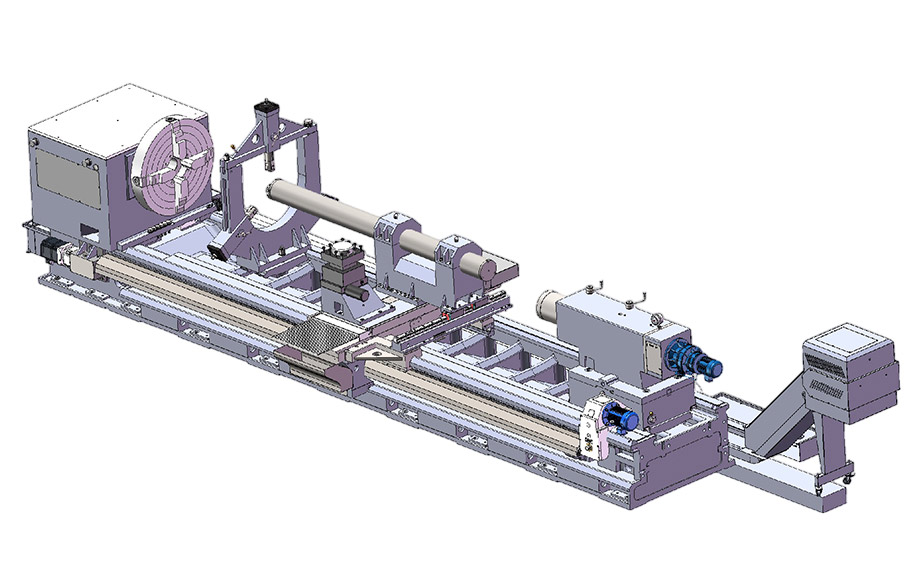

CTK611-T series CNC big size machine tools are big horizontal flat-bed CNC lathes, which can adopt CNC systems such as SIEMENS/ FANUC/ KND/GSK, and all-digital AC servo system.

Turning main drive manual four- speed stepless speed change, the main motor is DC motor or AC servo motor, two linkage control.

The Z-axis and X-axis of the machine tool with a center distance of 1-5M use a ball screw pair and an AC servo motor to achieve longitudinal and lateral movement, with good positioning and repeated positioning accuracy.

The main components and structures have been optimized and designed, and the stability and performance of the whole machine are excellent. Applicable to energy, chemical industry, electromechanical, papermaking, automobile industry and other industries. It has the characteristics of high precision, high power, high rigidity and high degree of automation.

It is suitable for processing shaft, sleeve and disc parts. Such as turning inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end surfaces, grooving, chamfering, threading, etc., the process has strong adaptability, high processing efficiency, simple operation, and comprehensive functions, which can reduce the need for skilled workers. requirements, it is an ideal machining equipment. Notice:boring,milling,grinding,drilling functions are optional.

Notice:boring,milling,grinding,drilling functions are optional.

Product Parameters:

Item		Machine model
CNC Turning and boring function Parts		Optional; After adding this functional part, deep hole boring machine processing and deep hole turning processing can be realized.
CNC Turning and milling function Parts		Optional; After adding this functional part, drilling and simple milling can be realized.
CNC Turning and grinding function Parts		Optional; After adding this functional part, the abrasive belt grinding of the outer circle can be realized.
		CTK61125T/40T	CTK61160T	CTK61180T/ CTK611200T
Chuck	Standard	Φ1250mm	Φ1400mm	Φ1600mm
	Special ordered Parts	Φ1400 Φ1600 Φ1800 Φ2000mm
Center Frame	Standard	Φ120-470mm		Φ400-700mm
	Special ordered Parts	Φ400-700mm		Φ120-470mm
Turret	Standard	LDB4-C61125
	Special ordered Parts	Optional according to user requirements
Roller	Standard	No, special order is available

Item	Machine model
	CTK61125T	CTK61140T	CTK61160T	CTK61180T	CTK61200T
Max. loading capacity of two centers	25T
Machine bed width	1350mm
Max.swing diameter over bed	1300mm	1500mm	1700mm	1900mm	2100mm
Max.swing diameter over turret	850mm	1050mm	1250mm	1450mm	1650mm
Max.workpiece Length	1000-16000mm
Headstock Parameters
Spindle front bearing diameter	280mm
Spindle bore diameter	Φ100mm
Spindle taper	Metric 140#
Spindle speed series	Hydraulic four gear, stepless speed regulation within gear
Spindle rotary speed range	2-200r/Min
Main motor power	55kW
Infeed system parameters
SIEMENS CNC control system
Longitudinal servo motor torque	48N.M
Transverse servo motor torque	27N.M
FANUC CNC system
Longitudinal servo motor torque	40N.M
Transverse servo motor torque	30N.M
Cutter bar cross section	60×60
Turret workstation quantity	Vertical type 4 station
Cutter disc Repeated positioning accuracy	0.01mm
Longitudinal Rapid feed rate	4000mm/Min
Transverse Rapid feed rate	4000mm/Min
Longitudinal feed speed	1-2000mm/Min
Transverse Infeed speed	1-2000mm/Min
Tailstock parameters
Tailstock sleeve diameter	300mm
Tailstock sleeve taper	1:7
Tailstock sleeve stroke	300mm

There are many types of optional accessories for machine tools, such as hydraulic center frame, boring tool holder, power turret, tool arm, online detection, grating ruler, tailstock chuck, hydraulic chuck, workpiece support roller, C-axis spindle indexing, etc. Welcome users with needs to make requests before ordering machine tools, and we will provide you with the best solution.
