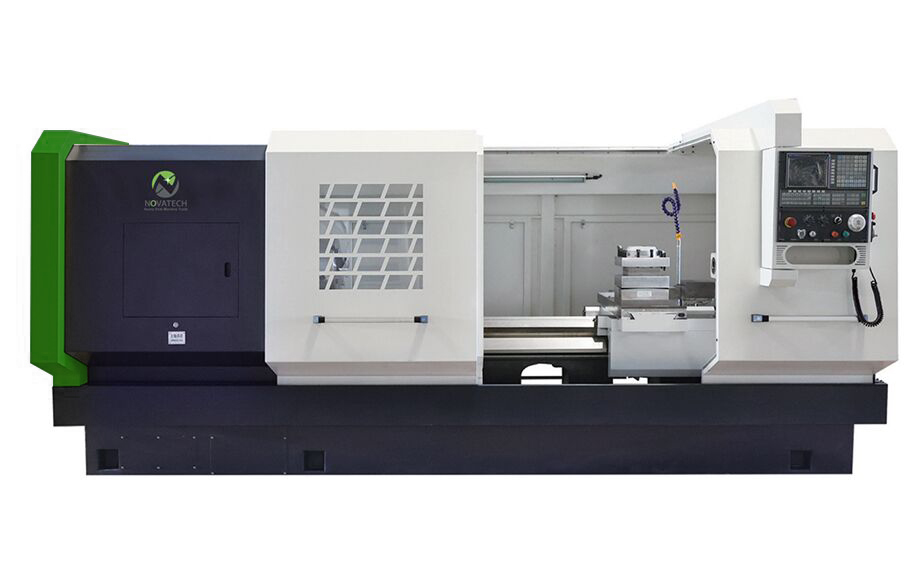

CK6150/CK6163/CK6180 CNC lathe-CNC Lathe（flat bed)-Novatech CNC Heavy Duty Machine Tool(Shandong)Co.，Ltd-Novatech

Product Features:

STANDARD ACCESSORIES

NC turret 4-station,3-jaw chuck,manual tailstock, automatic lubrication,coolant system,semi-shield

OPTIONAL ACCESSORIES

FANUC,SIEMENS,KND and other CNC contrller,hydraulic turret or power turret,pneumatic chuck or hydraulic chuck,hydraulic tailstock, full-shield

CNC LATHE APPLICATION

This series CNC lathe is an economic machine tool which capables of rough machining and finish machining with mechanical workpieces. Its main characters such as reliable structure、easy operating、economical and practical. With comprehensive control system, meet the performance of many industies.This series lathe is mainly used for the procesing of the inner bore,end face,cylindrical surface,conical surace,thread of shafts,diskes and rotational parts.It is widely used in automoblie industry and military industry because of its hich efficiency and high precision maching features.

FEATURES

Integral machine bed adopts high strength iron to realize high rigidity and precision;

Ultrasonic frequency qunenched guide-ways are hard enough for good wear-resistance;

Carriage and quide way contact surface use Turcite B to maintain accuracy;

Spindle with three-gear stepless speed change main transmission system;

Widen machine tool support plate.

Product Parameters:

Main technical parameters of CK6150/CK6163/CK6180 Series CNC lathe

ltem

Unit

CK6150

CK6163

CK6180

CNC system

(Standard equipment):GSK980TDi
(Alternative confguration):FANUC 0i-TF;SIMENS808D;KND K1000Ti

Max dia.swing over bed

500

630

1400

Max dia swing over cross slide

300

350

950

Max.length of work-piece

1000

1500

Width of bed

400

550

755

Spindle bore

105

640

Spindle nose

C8/D8

C11

Spindle taper hole

90/1:20

120/1:20

Power of spindle motor

7.5

Mode of spindle speed

Three gears,smooth adjustment

Range of spindle speed

r/min

(L):10-200

(M):180-500

(H):480-1200

  (L):10-200
  (M):180-500
  (H):480-1200

X/Z rapid traverse

mm/min

4000/5000

Min.Feeding set unit of X/Z

0.001

Tailstock quill

Diameter

100

Travel

150

250

Taper

Morse N0.5

Morse NO.5/6

Turret

Model

HAK-21192

HAK-21240

No.of tool stations

Vertical four-station

Dimension

25x25

32x32

Turret indexing time

2.6

4.1

Chuck

K11-250three jaw chuck

K11-320three jaw chuck

Positioning accuracy

0.020

Repositioning accuracy

0.01

Overall dimensions(L*V*H)

2670x1600x1650

3650x1880x1880

Machine weight

2.5

5.2

*Please Note:All parameters are subject to change without prior notice.
