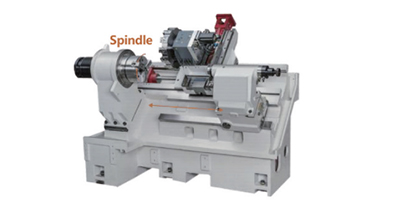

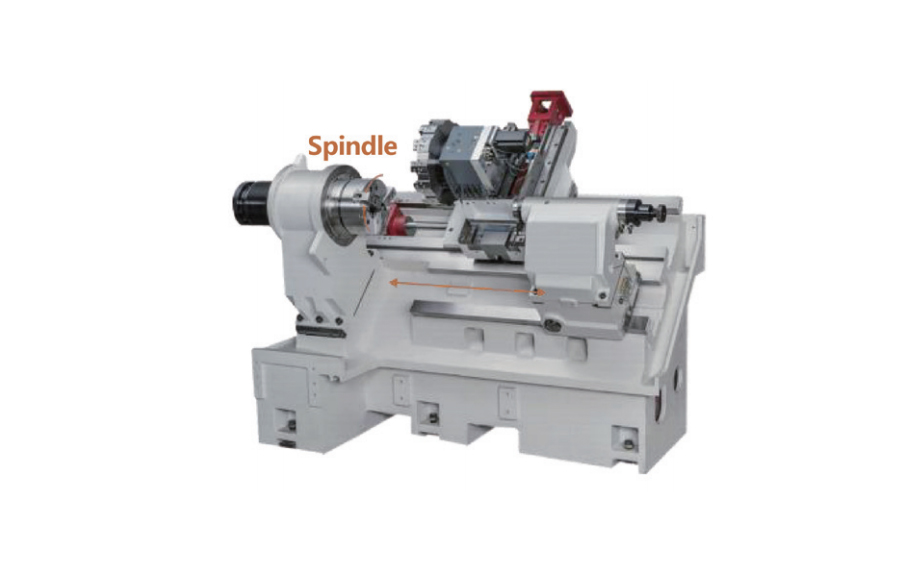

Reliability & High Precision Mechanical Structure

● The lathe bed structure is entirely made of Meehanite cast iron. The stress is eliminated to ensure long-term stable accuracy.

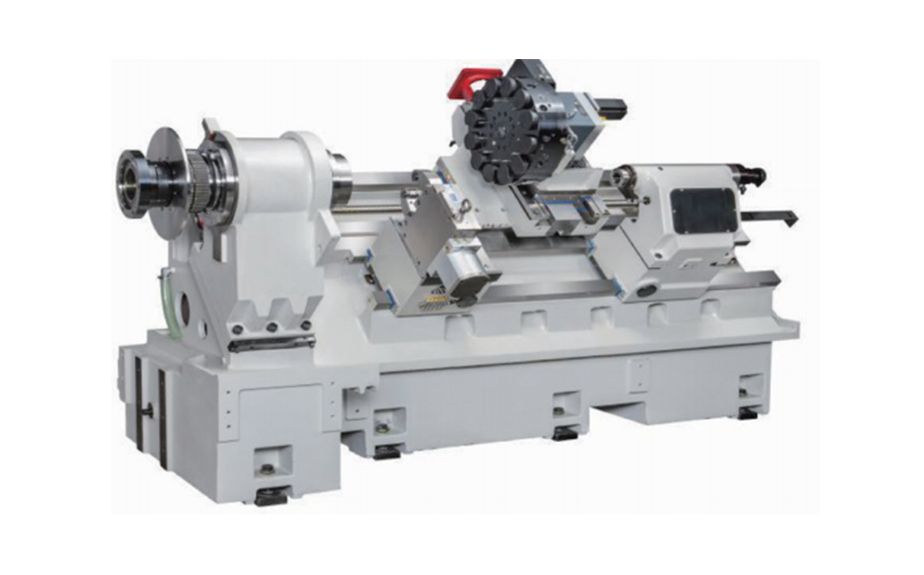

● 45° inclined bed structure provides efficiency chip disposal and contribute stability by its own cast iron lathe base.

● Ball screws are preloaded to perform a highly accurate positioning and there are driven directly by high performance servo motor.

● The X, Z, and Y axes all adopt box way structures.

● The B-Axis adopts high-strength box way or linear way.

● we focuses on design and production of box way structure.

CNC Lathe are less vibration and better damping.

Advantage

● Compact structure. ·Spacious processing area.

● Meet the processing requirementsof customized parts.

● 45° Slant bed, excellent chip removal performance in the processing area.

Advantage

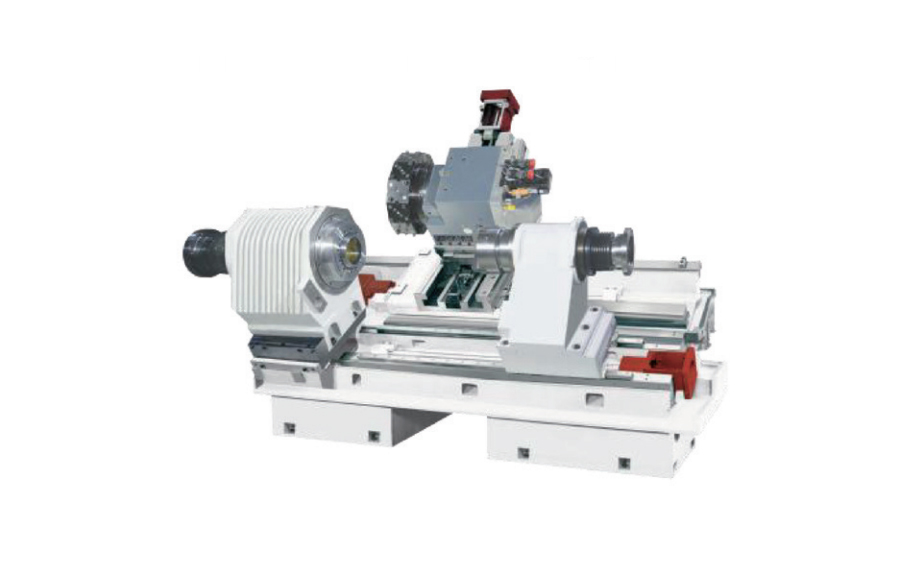

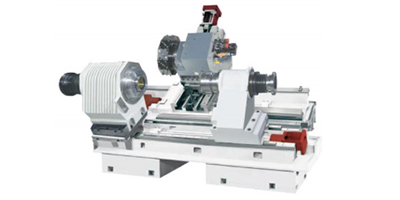

● From single spindle machine with high-speed turret to milling-turing compound center  with sub-spindle and C-Axis,Y-Axis.

● CNC Lathe provides full machining flexibility

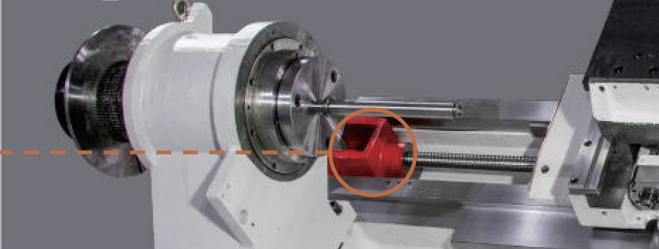

Torque Limiter (Optional)

In the event of a mechanical collision,the torque limiter will loosen to reduce the impact force, ensuring the original accuracy of the machine.
